4-176891-2

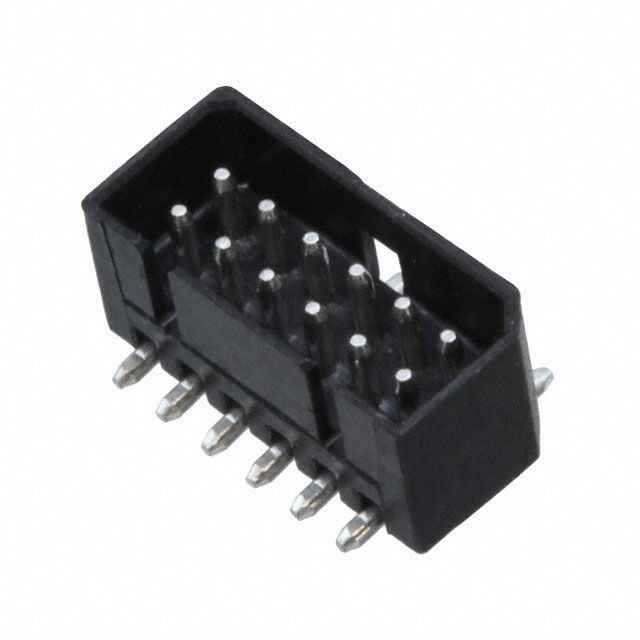

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4-176891-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4-176891-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4-176891-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADR .049" 12POS SMT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $0.255 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4-176891-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADR .049" 12POS SMT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88389 pcs | Data sheet | 176891 Package Drawing1.25mm FP Series Spec |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Fine Pitch |
| Row Spacing - Mating | 0.049" (1.25mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 4-176891-2-ND A116262TR |
Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS) | Insulation Height | 0.156" (3.96mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 12 position 0.049" (1.25mm) | Current Rating | 0.5A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
