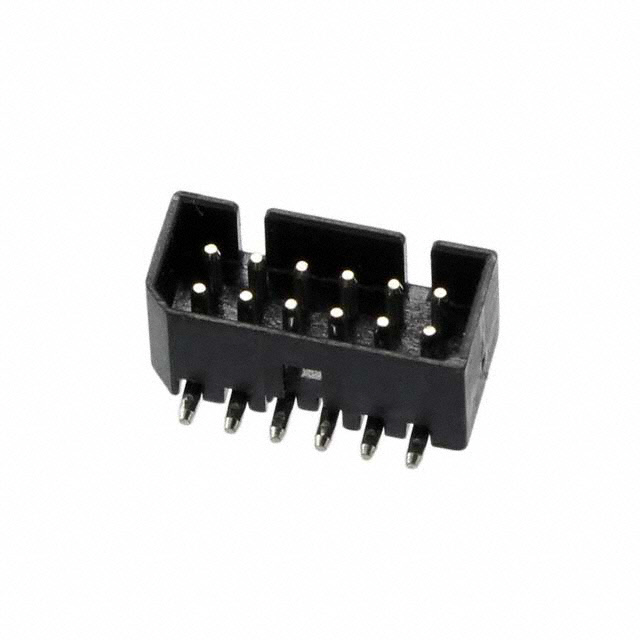

4-175643-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4-175643-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4-175643-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4-175643-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADR .049" 12POS SMT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.36 | $0.287 | $0.274 | $0.224 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.199 | $0.174 | $0.166 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4-175643-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADR .049" 12POS SMT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 120314 pcs | Data sheet | 175643 Drawing1.25mm FP Series Spec |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Fine Pitch |
| Row Spacing - Mating | 0.049" (1.25mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 4-175643-2-ND A115200 |
Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS) |
| Insulation Height | 0.156" (3.96mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 12 position 0.049" (1.25mm) |
| Current Rating | 0.5A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
