4-146507-0

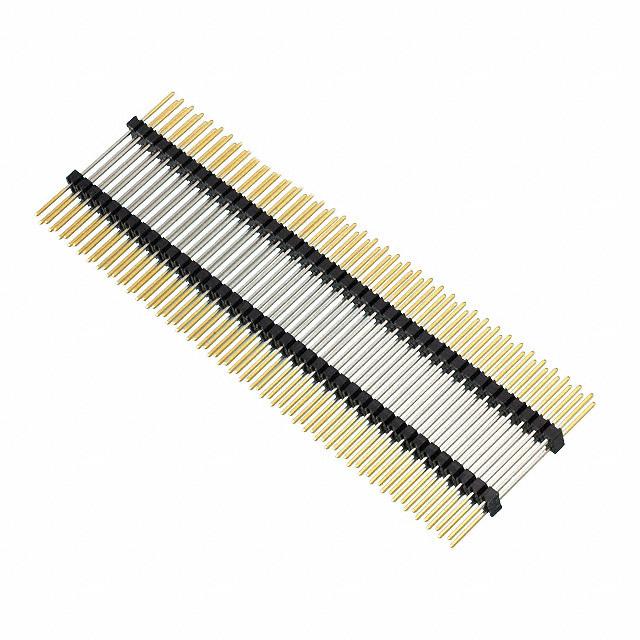

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4-146507-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4-146507-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4-146507-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 80POS |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $8.621 | $7.781 | $6.756 | $6.197 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4-146507-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 80POS | Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Quantity Available | 5024 pcs | Data sheet | 146507 |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | AMPMODU Mod II | Row Spacing | 0.100" (2.54mm) |
| Pitch | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | A108570 | Number of Rows | 2 |
| Number of Positions | 80 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Length - Tail | 0.330" (8.382mm) | Length - Stack Height | 0.670" (17.018mm) |
| Length - Post (Mating) | 0.330" (8.382mm) | Length - Overall Pin | 1.330" (33.782mm) |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant | Detailed Description | 80 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole |
| Contact Finish Thickness - Post (Mating) | 15.0µin (0.38µm) | Contact Finish - Post (Mating) | Gold |
| Color | Black |
