4-1123723-9

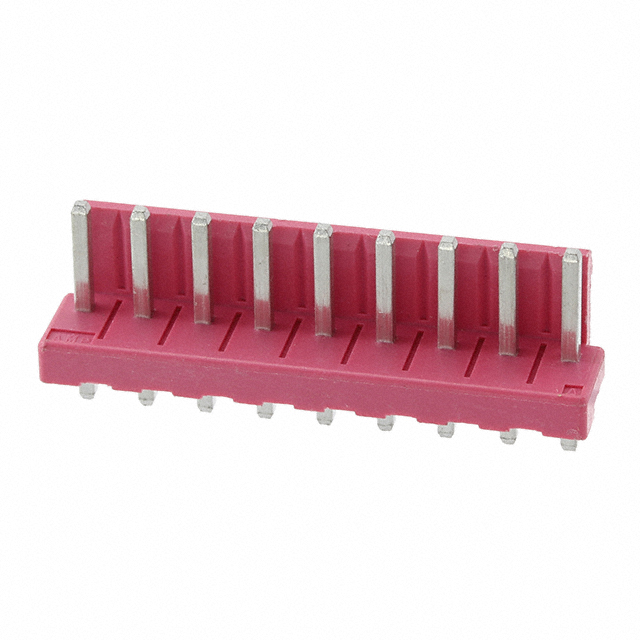

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4-1123723-9 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4-1123723-9 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 4-1123723-9 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 3.96 EP HDR ASSY 9P(RED) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 700 pcs | ||||
|---|---|---|---|---|---|
| $0.129 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 4-1123723-9 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 3.96 EP HDR ASSY 9P(RED) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 180370 pcs | Data sheet | 1123723 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | Economy Power |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.567" (14.40mm) |
| Other Names | A117610 | Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.118" (3.00mm) |
| Insulation Color | Red | Ingress Protection | - |
| Features | - | Fastening Type | Friction Lock |
| Detailed Description | Connector Header Through Hole 9 position 0.156" (3.96mm) | Current Rating | 7.5A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.146" (3.70mm) |
| Contact Length - Mating | 0.303" (7.70mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose, Industrial, Lighting |
