3SBM1071A2

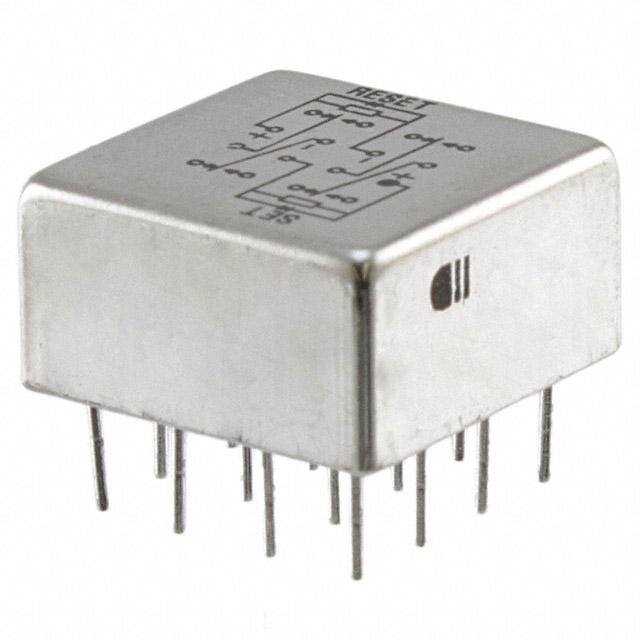

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3SBM1071A2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3SBM1071A2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3SBM1071A2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE 4PDT 2A 28V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 5 pcs | ||||
|---|---|---|---|---|---|
| $400.406 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3SBM1071A2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE 4PDT 2A 28V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 94 pcs | Data sheet | 3SBM1071A2 |
| Category | Relays | Turn On Voltage (Max) | 13.5 VDC |
| Turn Off Voltage (Min) | - | Termination Style | PC Pin |
| Switching Voltage | 28VDC - Nom | Series | Military, MIL-R-39016/31, 3SBM, CII |
| Relay Type | General Purpose | Packaging | Bulk |
| Other Names | 1122-1111 1122-1111-MIL 1617086-6 3SBM1071A2-ND A101672 A101672-ND M39016/31-003M |
Operating Temperature | -65°C ~ 125°C |
| Operate Time | 4ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 27 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Features | - |
| Detailed Description | General Purpose Relay 4PDT (4 Form C) Through Hole | Contact Rating (Current) | 2A |
| Contact Material | - | Contact Form | 4PDT (4 Form C) |
| Coil Voltage | 26.5VDC | Coil Type | Latching, Dual Coil |
| Coil Resistance | 975 Ohms | Coil Power | 720 mW |
| Coil Current | 27.2mA |
