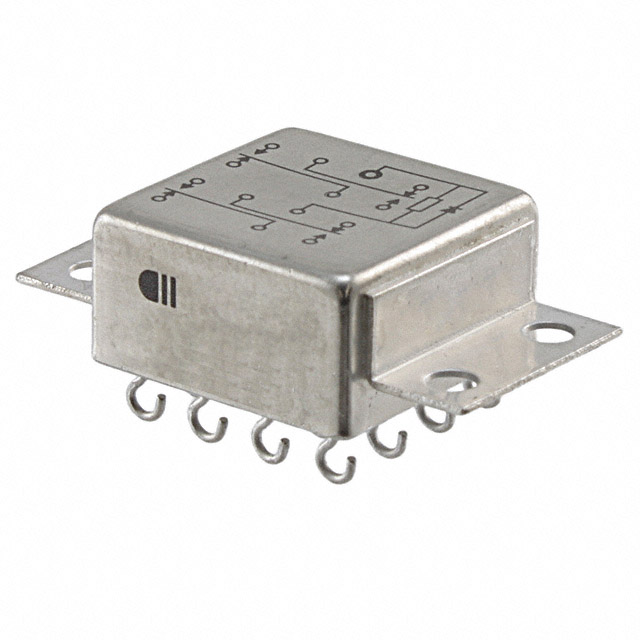

3SBH1230A2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3SBH1230A2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3SBH1230A2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3SBH1230A2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE 4PDT 2A 28V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 5 pcs | ||||
|---|---|---|---|---|---|
| $218.831 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3SBH1230A2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE 4PDT 2A 28V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 179 pcs | Data sheet | 3SBH1230A2 |
| Category | Relays | Turn On Voltage (Max) | 13.5 VDC |
| Turn Off Voltage (Min) | 1.5 VDC | Termination Style | Solder Hook |
| Switching Voltage | 28VDC - Nom | Series | Military, MIL-R-39016/53, 3SBH, CII |
| Release Time | 6ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 1122-1009 1122-1009-MIL 2-1617076-5 A101559 A101559-ND M39016/53-011M |
| Operating Temperature | -65°C ~ 125°C | Operate Time | 4ms |
| Mounting Type | Chassis Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Features | Sealed - Hermetically | Detailed Description | General Purpose Relay 4PDT (4 Form C) Chassis Mount |
| Contact Rating (Current) | 2A | Contact Material | - |
| Contact Form | 4PDT (4 Form C) | Coil Voltage | 26.5VDC |
| Coil Type | Non Latching | Coil Resistance | 720 Ohms |
| Coil Power | 975 mW | Coil Current | 36.8mA |
