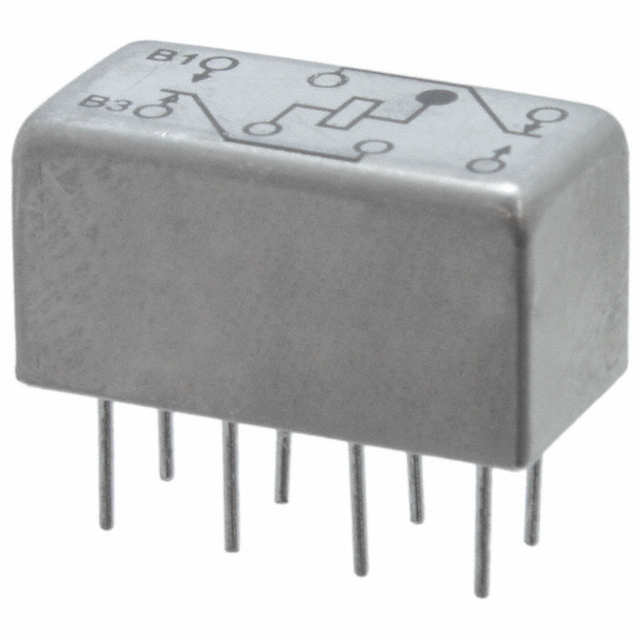

3SBC1517A2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3SBC1517A2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3SBC1517A2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3SBC1517A2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE DPDT 2A 28V |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $74.509 | $69.853 | $65.196 | $62.868 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3SBC1517A2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 2A 28V | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 568 pcs | Data sheet | 3SBC1517A2 |
| Category | Relays | Turn On Voltage (Max) | 5.4 VDC |
| Turn Off Voltage (Min) | 0.6 VDC | Termination Style | PC Pin |
| Switching Voltage | 28VDC - Nom | Series | Military, MIL-R-39016/13, 3SBC, CII |
| Release Time | 4ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 1122-1096 1122-1096-MIL 1122-1096-ND 2-1617072-6 3SBC1517A2-ND A101656 A101656-ND A139010 M39016/13-056M |
| Operating Temperature | -65°C ~ 125°C | Operate Time | 4ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Features | Sealed - Hermetically | Detailed Description | General Purpose Relay DPDT (2 Form C) Through Hole |
| Contact Rating (Current) | 2A | Contact Material | - |
| Contact Form | DPDT (2 Form C) | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Resistance | 210 Ohms |
| Coil Power | 686 mW | Coil Current | 57.2mA |
