380598-1

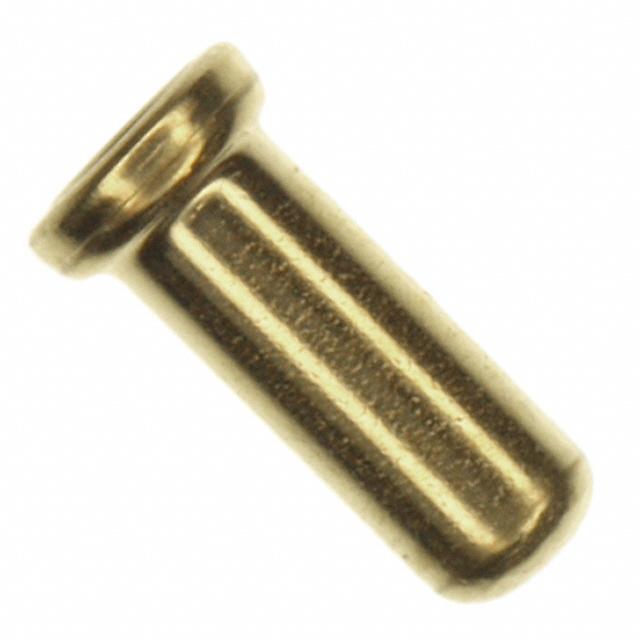

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 380598-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 380598-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 380598-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PIN RCPT .018-.040 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.411 | $0.362 | $0.341 | $0.327 | $0.313 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.284 | $0.256 | $0.227 | $0.206 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 380598-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PIN RCPT .018-.040 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 115838 pcs | Data sheet | 380598 |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.145" (3.68mm) | Series | - |
| Pin Hole Diameter | 0.048" (1.22mm) | Packaging | Bulk |
| Other Names | 380598-1-ND A29070 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.086" ~ 0.089" (2.18mm ~ 2.26mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Length - Overall | 0.262" (6.65mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | 0.12N ~ 0.34N |
| Flange Diameter | 0.125" (3.18mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.018" ~ 0.040" (0.46mm ~ 1.02mm) No Tail Solder | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Board Thickness | 0.156" (3.96mm) | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.018" ~ 0.040" (0.46mm ~ 1.02mm) |
