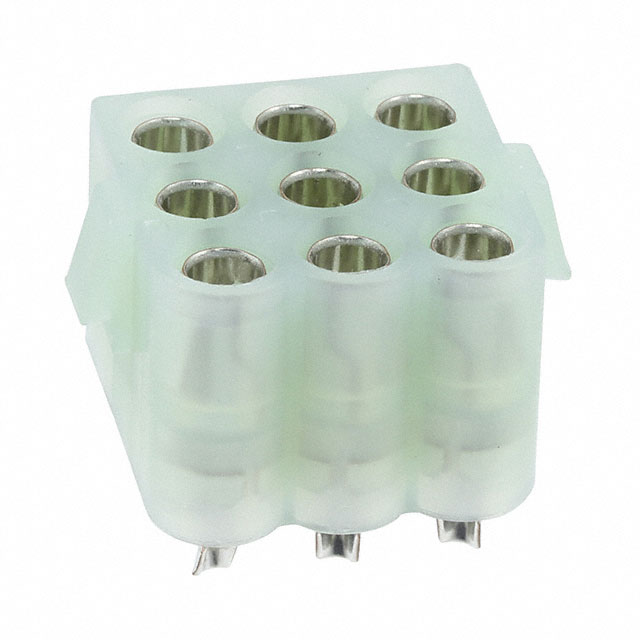

365046-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 365046-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 365046-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 365046-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER PIN 9POS VERT TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $5.057 | $4.598 | $3.908 | $3.333 | $3.058 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 365046-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER PIN 9POS VERT TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10958 pcs | Data sheet | 365046 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | MATE-N-LOK | Row Spacing - Mating | 0.240" (6.10mm) |
| Pitch - Mating | 0.240" (6.10mm) | Packaging | Bulk |
| Other Names | 365046-1-ND A122445 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.571" (14.50mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | 9 Position Header Connector 0.138" (3.50mm) Through Hole |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.161" (4.09mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
