342117-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 342117-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 342117-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 342117-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |

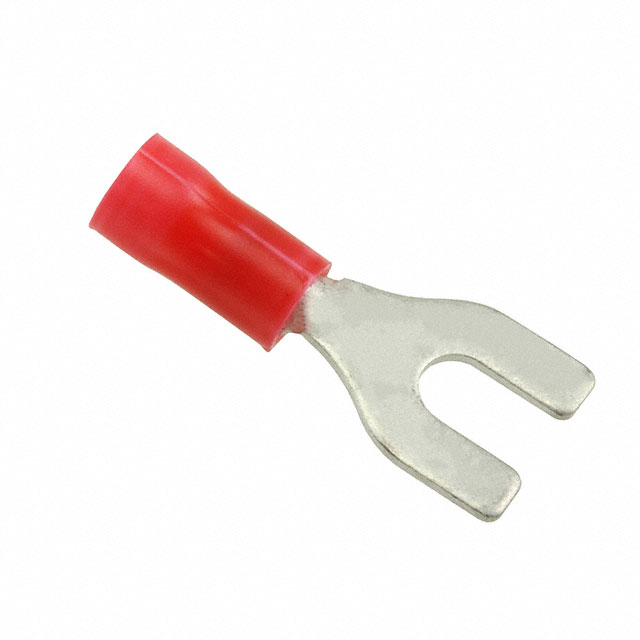

| Description | CONN SPADE TERM 16-22AWG RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.17 | $0.16 | $0.137 | $0.117 | $0.112 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.101 | $0.096 | $0.08 | $0.073 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 342117-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 16-22AWG RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 268865 pcs | Data sheet | 342117 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.375" (9.53mm) | Tongue Inside Opening | 0.138" (3.50mm) |
| Termination | Crimp | Terminal Type | Standard |
| Stud/Tab Size | - | Series | Plasti-Grip |
| Packaging | Bulk | Other Names | 342117-1-ND A128755 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Manufacturer Standard Lead Time | 14 Weeks |
| Length - Termination | 0.437" (11.10mm) | Length - Ring Center to Termination | 0.295" (7.50mm) |
| Length - Overall | 0.925" (23.50mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.106" ~ 0.142" (2.69mm ~ 3.61mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Red Spade Terminal Connector Crimp 16-22 AWG |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red |
