326861

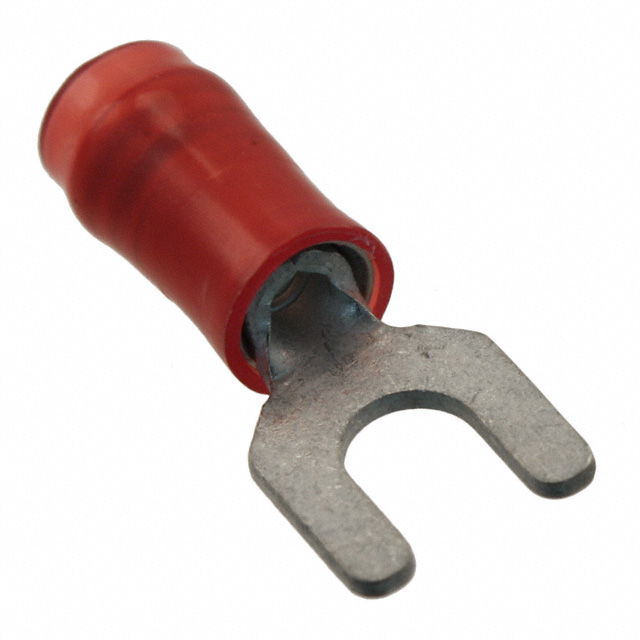

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 326861 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 326861 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 326861 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 16-22AWG #6 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.12 | $0.113 | $0.097 | $0.083 | $0.079 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.071 | $0.068 | $0.057 | $0.052 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 326861 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 16-22AWG #6 RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 461449 pcs | Data sheet | 326861 |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.297" (7.54mm) | Tongue Inside Opening | 0.145" (3.68mm) |
| Termination | Crimp | Terminal Type | Standard |
| Stud/Tab Size | 6 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 326861-ND A27417 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 11 Weeks |
| Length - Termination | 0.550" (13.97mm) | Length - Ring Center to Termination | 0.203" (5.16mm) |
| Length - Overall | 0.753" (19.13mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.105" ~ 0.140" (2.67mm ~ 3.56mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Red 6 Stud Spade Terminal Connector Crimp 16-22 AWG |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red |
