324560

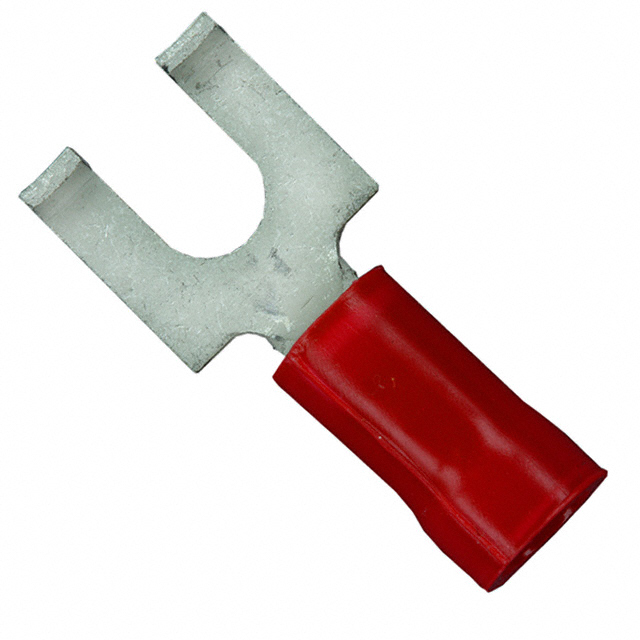

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 324560 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 324560 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 324560 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 16-22AWG #6 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $0.119 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 324560 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 16-22AWG #6 RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 189261 pcs | Data sheet | 324560 |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.328" (8.33mm) | Tongue Inside Opening | 0.145" (3.68mm) |
| Termination | Crimp | Terminal Type | Flanged |
| Stud/Tab Size | 6 Stud | Series | Plasti-Grip |
| Packaging | Bulk | Other Names | A28249 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Length - Termination | 0.416" (10.57mm) |
| Length - Ring Center to Termination | 0.203" (5.16mm) | Length - Overall | 0.780" (19.81mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | 0.105" ~ 0.140" (2.67mm ~ 3.56mm) |
| Insulation | Insulated | Features | Serrated Termination |
| Detailed Description | Red 6 Stud Spade Terminal Connector Crimp 16-22 AWG | Contact Material | Copper |
| Contact Finish | Tin | Color | Red |
