322985

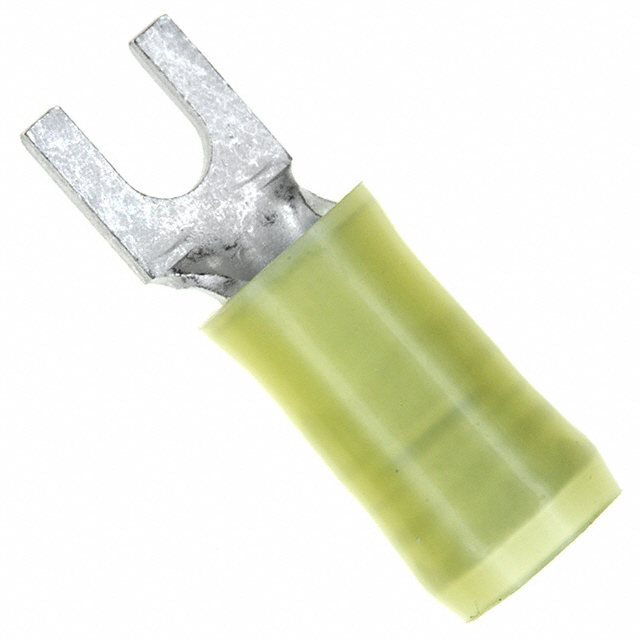

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 322985 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 322985 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 322985 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 10-12AWG #6 YEL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.325 | $0.284 | $0.268 | $0.256 | $0.245 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.223 | $0.201 | $0.178 | $0.162 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 322985 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 10-12AWG #6 YEL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 148534 pcs | Data sheet | 322985 |
| Category | Connectors, Interconnects | Wire Gauge | 10-12 AWG |
| Width - Outer Edges | 0.290" (7.37mm) | Tongue Inside Opening | 0.145" (3.68mm) |
| Termination | Crimp | Terminal Type | Standard |
| Stud/Tab Size | 6 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 322985-ND A27423 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 12 Weeks |
| Length - Termination | 0.591" (15.01mm) | Length - Ring Center to Termination | 0.218" (5.54mm) |
| Length - Overall | 0.954" (24.23mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.150" ~ 0.230" (3.81mm ~ 5.84mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Yellow 6 Stud Spade Terminal Connector Crimp 10-12 AWG |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Yellow |
