322307

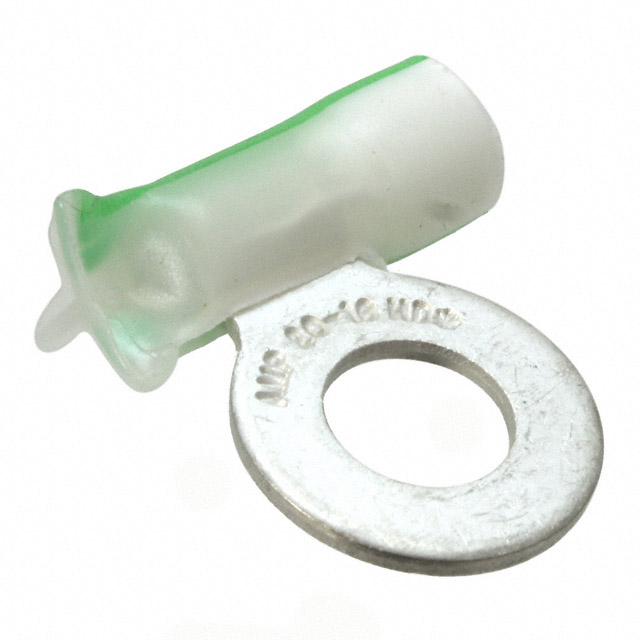

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 322307 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 322307 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 322307 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 16-20AWG #14 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.915 | $0.879 | $0.805 | $0.769 | $0.732 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.641 | $0.622 | $0.531 | $0.494 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 322307 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 16-20AWG #14 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77025 pcs | Data sheet | 322307 |
| Category | Connectors, Interconnects | Wire Gauge | 16-20 AWG |
| Width - Outer Edges | 0.500" (12.70mm) | Thickness | 0.040" (1.02mm) |
| Termination | Crimp, Flag | Terminal Type | Circular |
| Stud/Tab Size | 14 Stud | Series | Plasti-Grip |
| Packaging | Bulk | Other Names | 322307-ND A121362 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Manufacturer Standard Lead Time | 18 Weeks |
| Length - Overall | 0.749" (19.02mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.115" ~ 0.170" (2.92mm ~ 4.32mm) | Insulation | Insulated |
| Features | Heavy Duty, Serrated Termination | Detailed Description | Ring Terminal Connector 14 Stud Circular 16-20 AWG Crimp, Flag |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Natural, Green Stripe |
