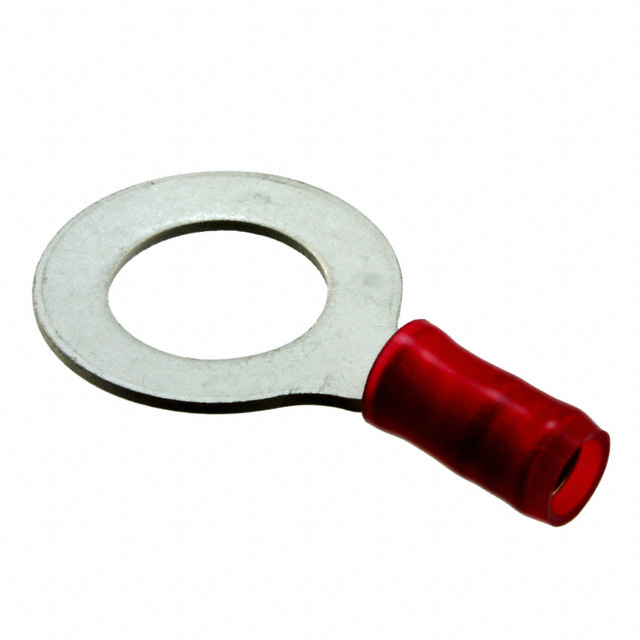

321522
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 321522 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 321522 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 321522 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING OVAL 16-22AWG #3/8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.723 | $0.656 | $0.616 | $0.589 | $0.562 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.508 | $0.468 | $0.401 | $0.375 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 321522 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING OVAL 16-22AWG #3/8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84168 pcs | Data sheet | 321522 |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.656" (16.66mm) | Thickness | 0.031" (0.79mm) |
| Termination | Crimp | Terminal Type | Oval |
| Stud/Tab Size | 3/8 Stud | Series | PIDG |
| Packaging | Bulk | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 19 Weeks | Length - Overall | 1.171" (29.74mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Diameter | 0.080" ~ 0.125" (2.03mm ~ 3.18mm) |
| Insulation | Insulated | Features | Serrated Termination |
| Detailed Description | Ring Terminal Connector 3/8 Stud Oval 16-22 AWG Crimp | Contact Material | Copper |
| Contact Finish | Tin | Color | Red |
