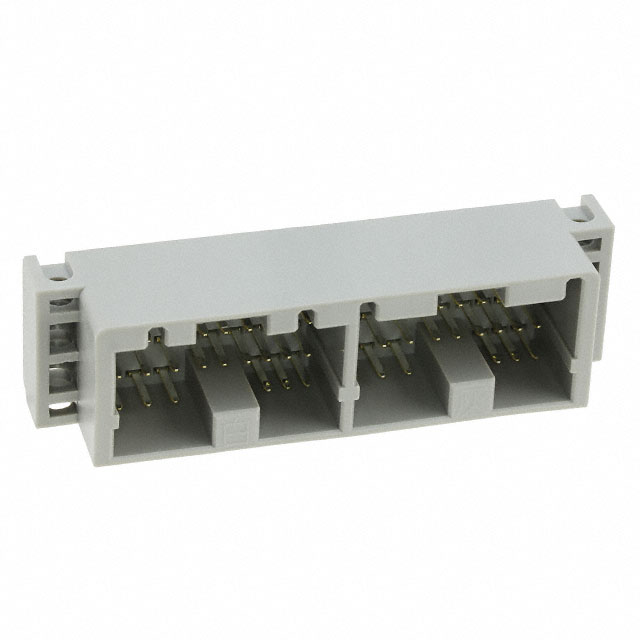

316370-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 316370-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 316370-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 316370-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RECPT R/A 48POS TIN TAB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 300 pcs | 600 pcs | 1200 pcs |
|---|---|---|---|---|---|
| $2.225 | $2.134 | $1.556 | $1.512 | $1.289 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 316370-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RECPT R/A 48POS TIN TAB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25031 pcs | Data sheet | 316370 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Multi-Lock |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 316370-6-ND A122199 |
Operating Temperature | -40°C ~ 120°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 48 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.783" (19.89mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 48 position |
| Current Rating | Varies by Wire Gauge | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.276" (7.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | - | Applications | Automotive, General Purpose |
