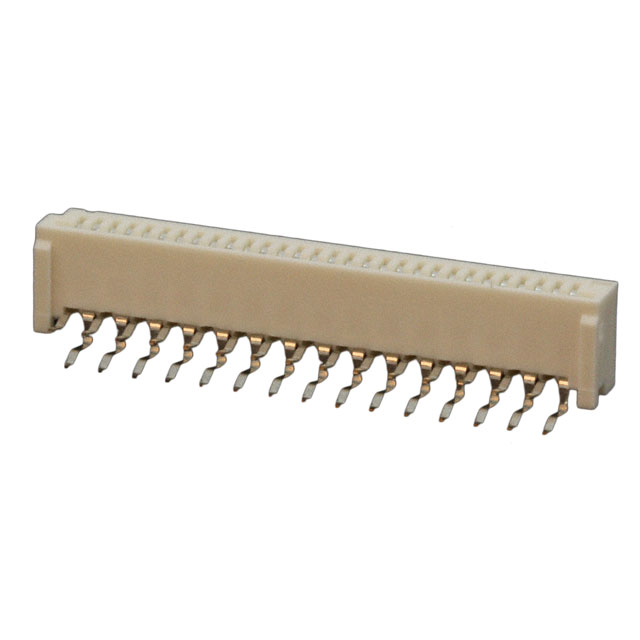

3-84533-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-84533-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-84533-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-84533-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN FFC TOP 30POS 1.25MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 20000 pcs | ||||
|---|---|---|---|---|---|
| $0.193 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-84533-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FFC TOP 30POS 1.25MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 99263 pcs | Data sheet | 84533 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Kinked Pin | Series | - |
| Pitch | 0.049" (1.25mm) | Packaging | Bulk |
| Other Names | 3845330 A100276 |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 30 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 21 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Housing Color | - |
| Height Above Board | 0.189" (4.80mm) | Flat Flex Type | FFC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 30 Position FFC Connector Contacts, Top 0.049" (1.25mm) Through Hole, Right Angle | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Top |
| Cable End Type | Tapered | Actuator Material | - |
| Actuator Color | - |
