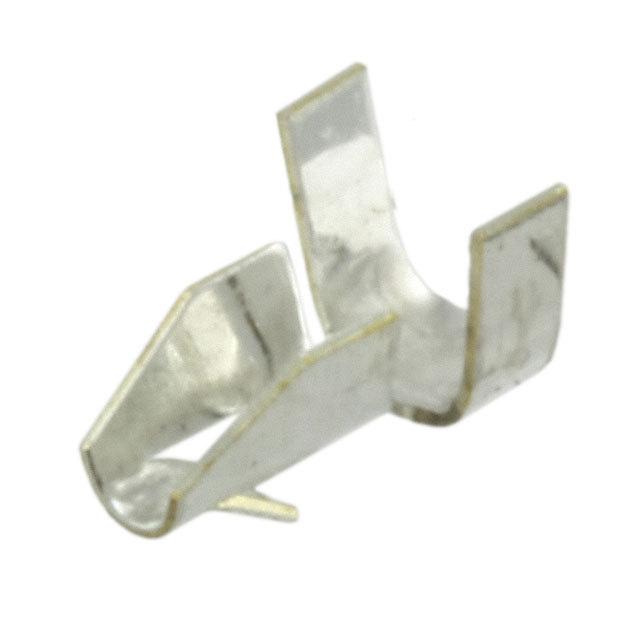

3-770565-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-770565-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-770565-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-770565-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN TERM WTB 18-22AWG TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.078 | $0.074 | $0.063 | $0.055 | $0.051 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.045 | $0.043 | $0.036 | $0.033 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-770565-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN TERM WTB 18-22AWG TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 728914 pcs | Data sheet | 770565 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Terminal Type | Through Board, Locking | Series | Mini Amp-In |
| Packaging | Cut Tape (CT) | Other Names | 3-770565-1-ND A100174CT |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.220" (5.59mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.060" ~ 0.110" (1.52mm ~ 2.79mm) | Hole Diameter | 0.072" ~ 0.077" (1.83mm ~ 1.96mm) |
| Detailed Description | WTB Tin Terminal Connector 18-22 AWG | Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
