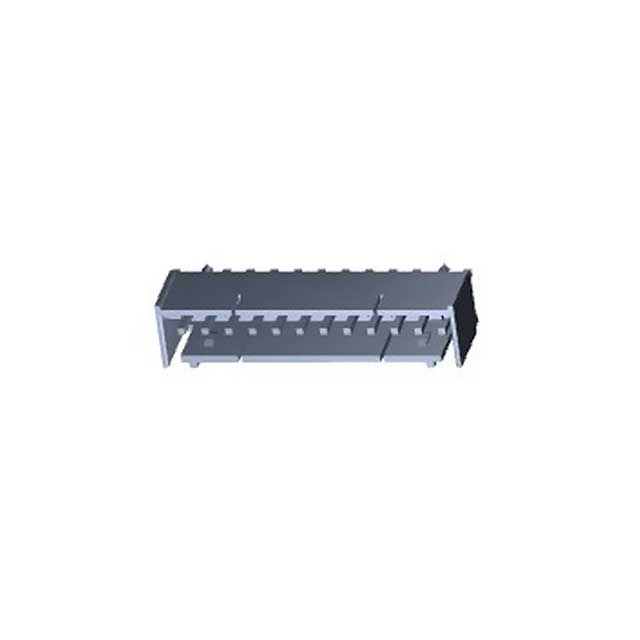

3-647127-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-647127-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-647127-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-647127-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 12POS VERT .156 TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 750 pcs | ||||
|---|---|---|---|---|---|
| $0.802 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-647127-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 12POS VERT .156 TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39687 pcs | Data sheet | 647127 |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MTA-156 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.550" (13.97mm) |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic, Glass Filled | Insulation Height | 0.525" (13.34mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Friction Lock |
| Detailed Description | Connector Header Through Hole 12 position 0.156" (3.96mm) | Current Rating | Varies by Wire Gauge |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.125" (3.18mm) |
| Contact Length - Mating | 0.300" (7.62mm) | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose, Industrial |
