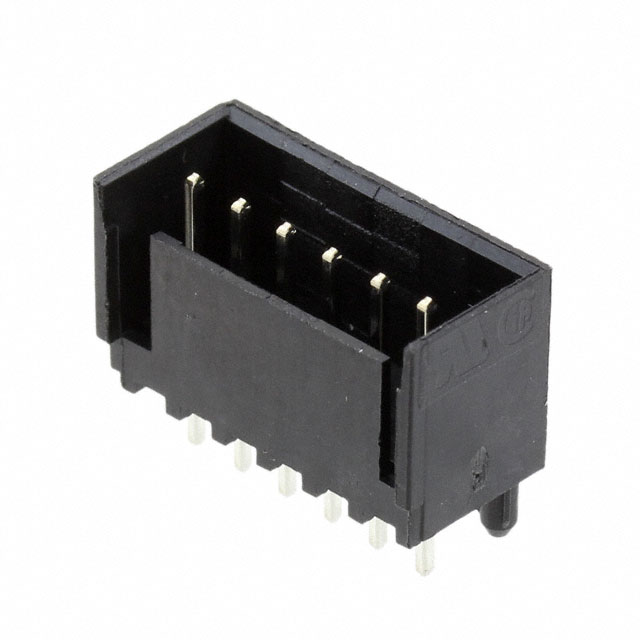

3-644893-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-644893-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-644893-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-644893-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 06PCST100SHRDHDRASSYLF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.499 | $0.451 | $0.387 | $0.322 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.276 | $0.245 | $0.239 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-644893-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 06PCST100SHRDHDRASSYLF | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 95729 pcs | Data sheet | 644893 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | CST-100 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.520" (13.21mm) |
| Other Names | A108138 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester |
| Insulation Height | 0.410" (10.41mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 6 position 0.100" (2.54mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.140" (3.56mm) | Contact Length - Mating | 0.280" (7.11mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Lighting |
