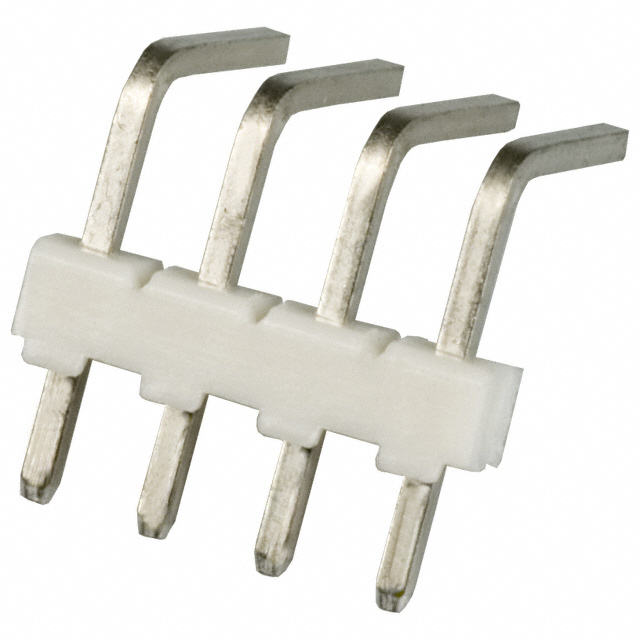

3-644694-4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-644694-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-644694-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-644694-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER RTANG 4POS .100 TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 15000 pcs | ||||
|---|---|---|---|---|---|
| $0.076 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-644694-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER RTANG 4POS .100 TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 259494 pcs | Data sheet | 644694 |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Unshrouded | Series | MTA-100 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 3-644694-4-ND A30910 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | - | Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.260" (6.60mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
