3-644617-2

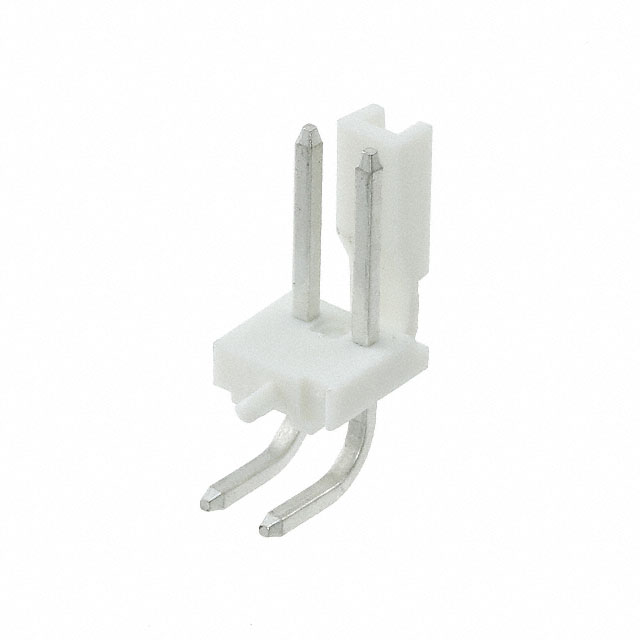

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-644617-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-644617-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-644617-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 2POS R/A .156 TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.166 | $0.157 | $0.11 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.094 | $0.078 | $0.067 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-644617-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 2POS R/A .156 TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 340502 pcs | Data sheet | 644617 |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | MTA-156 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic, Glass Filled | Insulation Height | 0.300" (7.62mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Friction Lock |
| Detailed Description | Connector Header Through Hole, Right Angle 2 position 0.156" (3.96mm) | Current Rating | Varies by Wire Gauge |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.125" (3.18mm) |
| Contact Length - Mating | 0.450" (11.43mm) | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose, Industrial |
