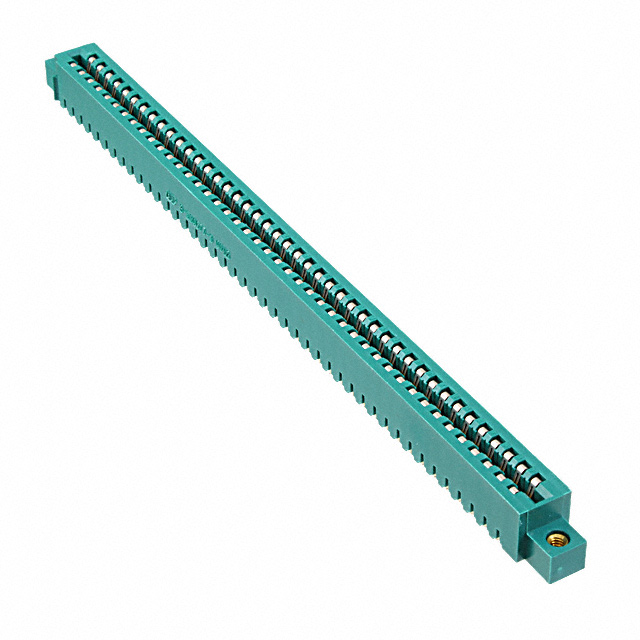

3-530677-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-530677-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-530677-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-530677-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN EDGE DUAL FMALE 86POS 0.156 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.548 | $7.01 | $6.291 | $6.111 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.392 | $5.033 | $4.925 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-530677-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 86POS 0.156 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 6071 pcs | Data sheet | 530677 |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | - | Read Out | Dual |
| Pitch | 0.156" (3.96mm) | Packaging | Bulk |
| Other Names | 3-530677-3-ND A115754 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 86 | Mounting Type | Through Hole |
| Material - Insulation | Polyester Thermoplastic, Glass Filled | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Gender | Female |
| Flange Feature | Flush Mount, Top Opening, Threaded Insert, 4-40 | Features | - |
| Contact Type | Hairpin Bellows | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Color | Green | Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.055" ~ 0.070" (1.40mm ~ 1.78mm) |
