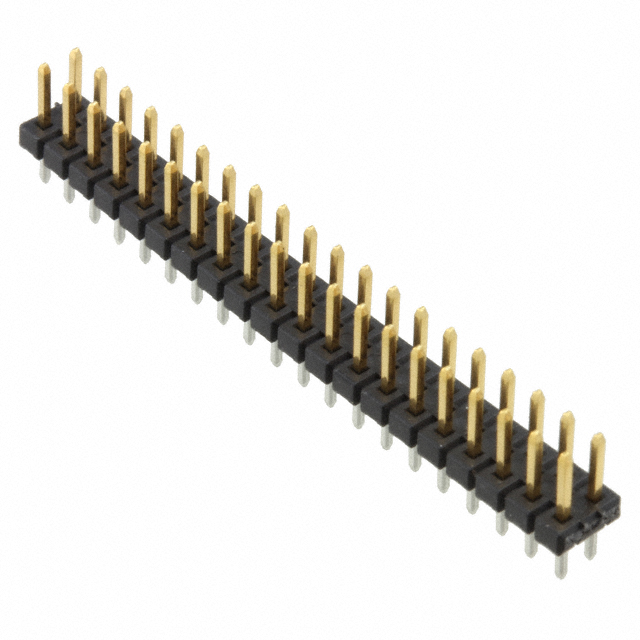

3-5176264-4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-5176264-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-5176264-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-5176264-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HDR BRKWAY 40POS 2MM 30GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.201 | $1.152 | $0.96 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.816 | $0.696 | $0.624 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-5176264-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HDR BRKWAY 40POS 2MM 30GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58668 pcs | Data sheet | 5176264 |
| Category | Connectors, Interconnects | Voltage Rating | 200VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | AMPMODU |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | 0.319" (8.10mm) |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 40 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.059" (1.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 40 position 0.079" (2.00mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.102" (2.60mm) |
| Contact Length - Mating | 0.157" (4.00mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Breakaway |
| Applications | - |
