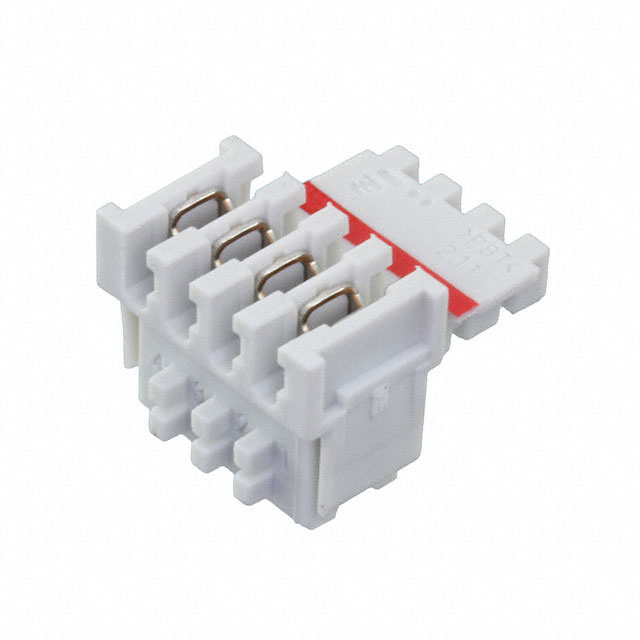

3-284865-4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-284865-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-284865-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-284865-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DIRECT MOUNT CARD EDGE CONN., |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.155 | $0.146 | $0.131 | $0.117 | $0.112 | |
| 364 pcs | 728 pcs | 1092 pcs | 2548 pcs | ||
| $0.102 | $0.097 | $0.08 | $0.073 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-284865-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DIRECT MOUNT CARD EDGE CONN., | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 301182 pcs | Data sheet | 284865 Drawing |
| Category | Connectors, Interconnects | Wire Type | Discrete |
| Wire Gauge | 22-24 AWG | Series | DuoPlug |
| Row Spacing | - | Pitch | 0.098" (2.50mm) |
| Packaging | Bulk | Other Names | A118472 |
| Number of Rows | 1 | Number of Positions | 4 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Mates to PCB | Fastening Type | - |
| Detailed Description | 4 Position Rectangular Receptacle Connector IDC Tin 22-24 AWG | Contact Type | Female Blade Socket |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Connector Type | Receptacle | Color | - |
| Cable Termination | IDC |
