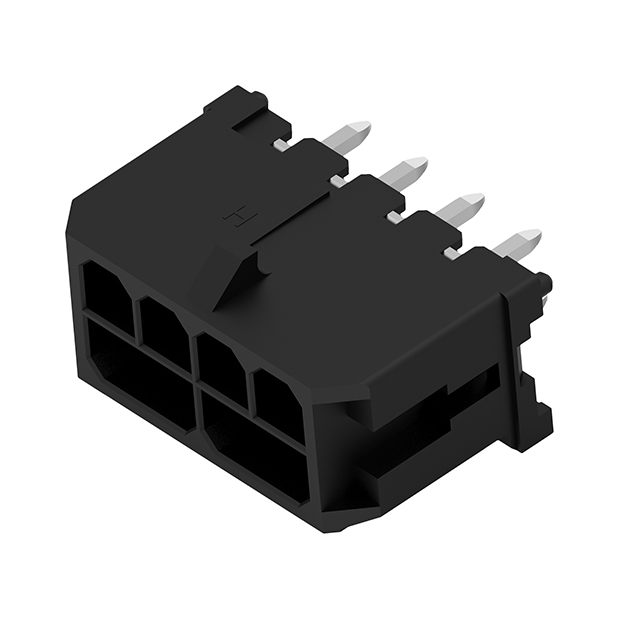

3-2204801-8
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-2204801-8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-2204801-8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-2204801-8 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 3-2204801-8 |
| Lead Free Status / RoHS Status |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 180 pcs |
|---|---|---|---|---|---|
| $0.743 | $0.676 | $0.635 | $0.607 | $0.579 | |
| 360 pcs | 540 pcs | 1080 pcs | 2520 pcs | ||
| $0.524 | $0.483 | $0.414 | $0.386 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-2204801-8 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 3-2204801-8 | Lead Free Status / RoHS Status | |
| Quantity Available | 97512 pcs | Data sheet | 2204801 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | ELCON Micro |
| Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | A139407 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 27 Weeks |
| Lead Free Status | Lead free | Insulation Material | Thermoplastic |
| Insulation Height | 0.390" (9.91mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 8 position 0.118" (3.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
