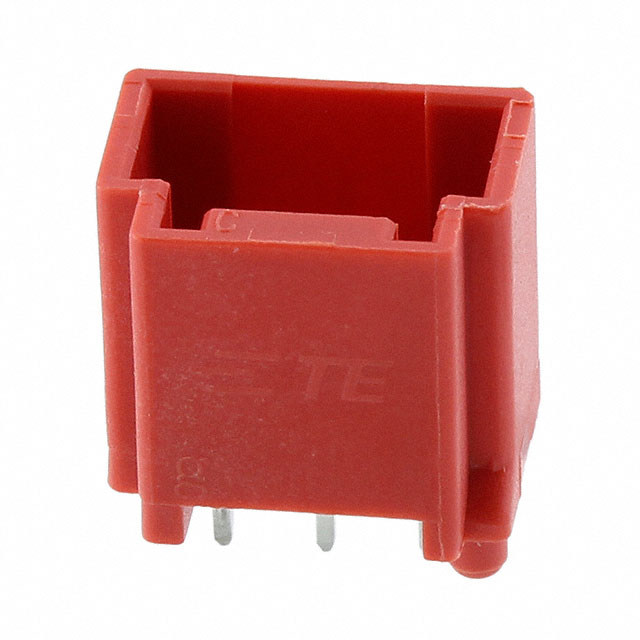

3-1971800-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-1971800-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-1971800-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-1971800-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | NEW GI CONN2.5 HDR ASMBLY 3P RED |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.119 | $0.113 | $0.079 | $0.068 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.057 | $0.048 | $0.045 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-1971800-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | NEW GI CONN2.5 HDR ASMBLY 3P RED | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 529971 pcs | Data sheet | 1971800 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Grace Inertia, GIC |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A116672 | Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 25 Weeks |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.346" (8.80mm) | Insulation Color | Red |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 3 position 0.098" (2.50mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
