3-1969584-8

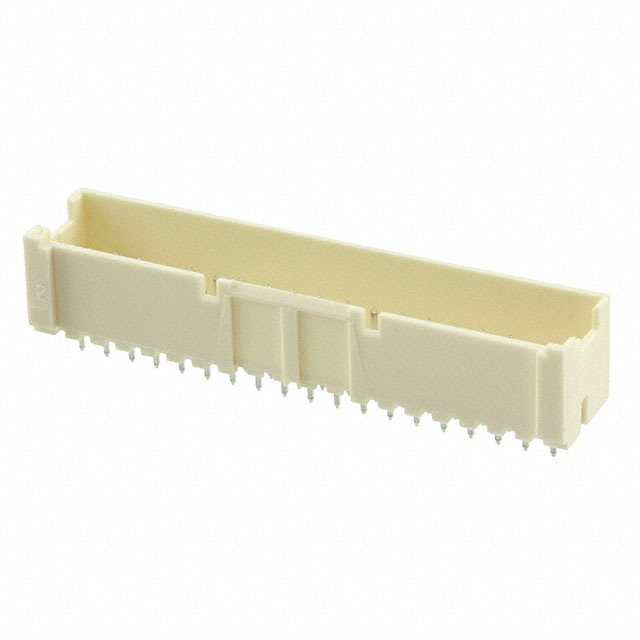

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-1969584-8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-1969584-8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-1969584-8 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | HDR ASSY VERT DBL ROW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.486 | $0.441 | $0.378 | $0.315 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.27 | $0.239 | $0.234 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-1969584-8 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | HDR ASSY VERT DBL ROW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85157 pcs | Data sheet | 1969584 DrawingEP 2.5 Instruction SheetEP 2.5 Application SpecEP 2.5 Product Spec |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Economy Power 2.5 |
| Row Spacing - Mating | 0.098" (2.50mm) | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A121927 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 38 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.386" (9.80mm) | Insulation Color | White |
| Ingress Protection | - | Features | Glow Wire Compliant |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 38 position 0.098" (2.50mm) |
| Current Rating | 4.2A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Lighting |
