3-1827158-8

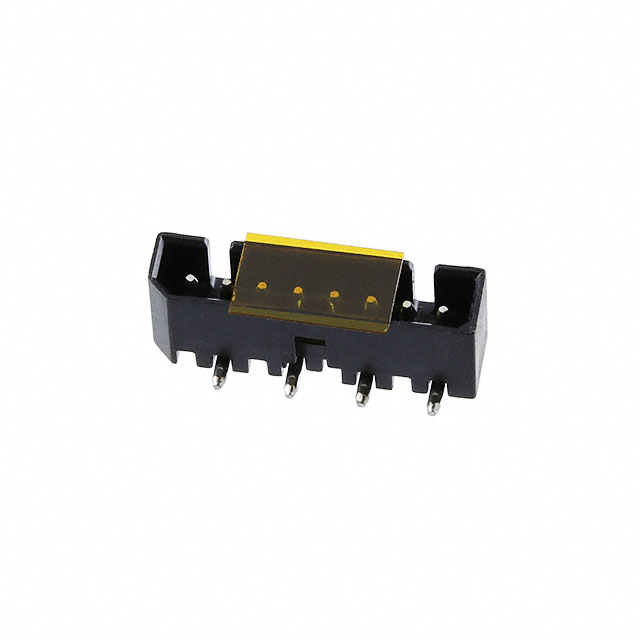

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-1827158-8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-1827158-8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-1827158-8 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 1.25FP,P08,SL,B,C,TR,5.00,5.80 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 22500 pcs | ||||
|---|---|---|---|---|---|
| $0.184 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-1827158-8 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 1.25FP,P08,SL,B,C,TR,5.00,5.80 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 106316 pcs | Data sheet | 1827158 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Fine Pitch |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | A118145TR | Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 4mm, 5mm | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS) |
| Insulation Height | 0.156" (3.96mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 8 position 0.049" (1.25mm) |
| Current Rating | 0.5A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
