3-1775801-3

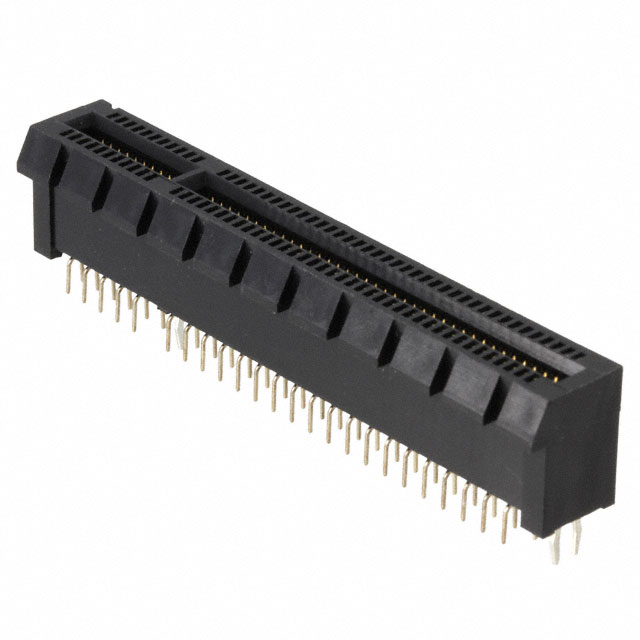

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-1775801-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-1775801-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-1775801-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PCI EXP FEMALE 98POS 0.039 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | 120 pcs |
|---|---|---|---|---|---|
| $1.345 | $1.293 | $1.185 | $1.131 | $1.077 | |
| 280 pcs | 520 pcs | 1000 pcs | 2520 pcs | ||
| $0.943 | $0.916 | $0.781 | $0.727 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-1775801-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PCI EXP FEMALE 98POS 0.039 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45169 pcs | Data sheet | Card Edge Connector Catalog1775801 Drawing |
| Category | Connectors, Interconnects | Termination | Solder, Staggered |
| Series | - | Read Out | Dual |
| Pitch | 0.039" (1.00mm) | Packaging | Tray |
| Other Names | 3-1775801-3-ND A115169 |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 98 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polyamide (PA46), Nylon 4/6 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | Board Lock, Locking Ramp | Contact Type | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | PCI Express™ | Card Thickness | 0.062" (1.57mm) |
