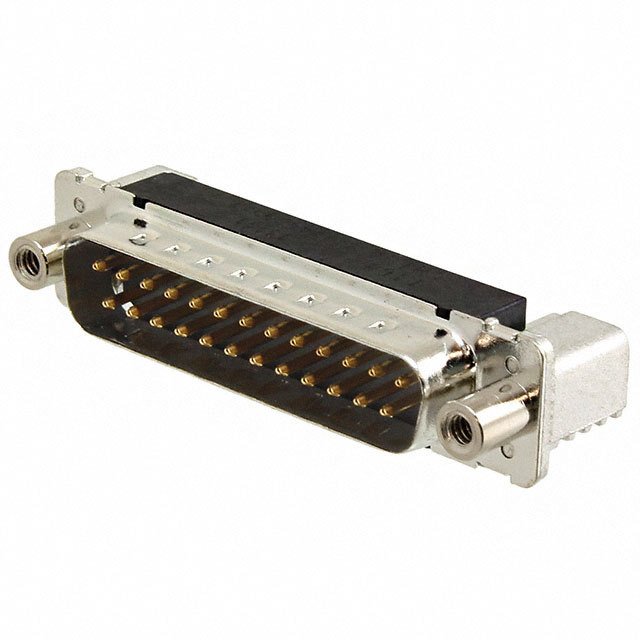

3-1740199-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-1740199-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-1740199-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-1740199-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB PLUG 25P SMD R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | ||||
|---|---|---|---|---|---|
| $1.537 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-1740199-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB PLUG 25P SMD R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25647 pcs | Data sheet | 1740199 DrawingAMPLIMITE HD-20 Brochure |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | - | Termination | Solder |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HD-20 | Packaging | Tape & Reel (TR) |
| Other Names | A118139TR | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Flange Feature | Mating Side, Female Screwlock (4-40) | Features | Board Guide, Grounding Indents |
| Detailed Description | 25 Position D-Sub Plug, Male Pins Connector | Current Rating | - |
| Contact Type | Signal | Contact Material | - |
| Contact Form | - | Contact Finish Thickness | 31.5µin (0.80µm) |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub | Color | Black |
| Backset Spacing | - |
