3-1393809-2

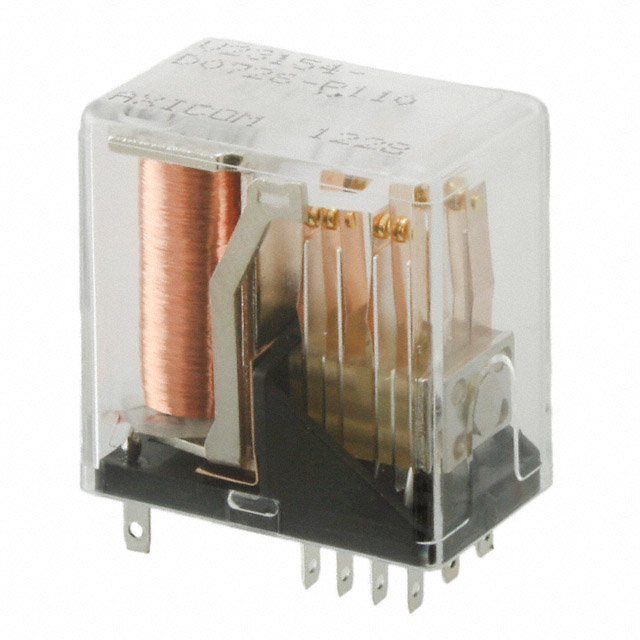

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-1393809-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-1393809-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-1393809-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE 4PDT 2A 125V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $31.878 | $30.20 | $28.523 | $26.845 | $25.167 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-1393809-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE 4PDT 2A 125V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1412 pcs | Data sheet | V23154/62 Cradle N Relay Datasheet |
| Category | Relays | Turn On Voltage (Max) | 30 VDC |
| Turn Off Voltage (Min) | - | Termination Style | Plug In |
| Switching Voltage | 125VAC, 150VDC - Max | Series | V23154, AXICOM |
| Release Time | 3ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 3-1393809-2-ND 313938092 PB1610 V23154D 726B110 V23154D 726B110-ND V23154D726B110 |
| Operating Temperature | -40°C ~ 70°C | Operate Time | 7.5ms |
| Mounting Type | Socketable | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - | Detailed Description | General Purpose Relay 4PDT (4 Form C) Socketable |
| Contact Rating (Current) | 2A | Contact Material | Silver (Ag), Gold (Au) |
| Contact Form | 4PDT (4 Form C) | Coil Voltage | 48VDC |
| Coil Type | Non Latching | Coil Resistance | 3.2 kOhms |
| Coil Power | 720 mW | Coil Current | 15.0mA |
