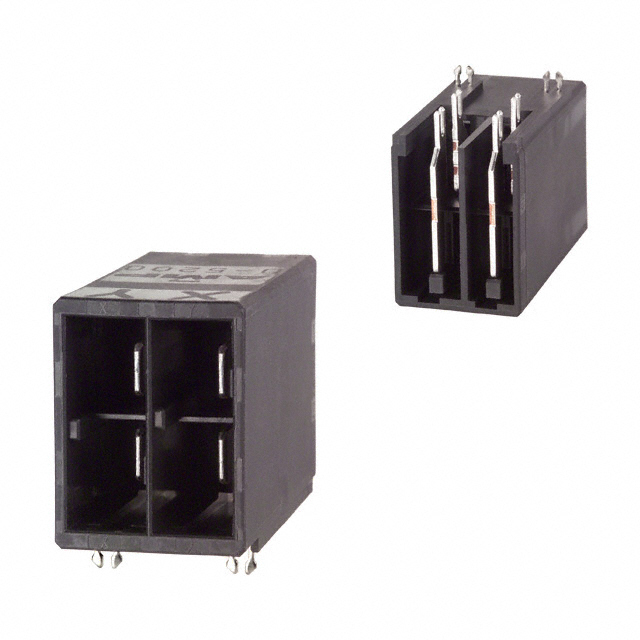

3-1318983-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-1318983-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-1318983-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-1318983-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 4POS R/A KEY-XY SLV |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $4.558 | $4.144 | $3.522 | $3.004 | $2.756 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-1318983-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 4POS R/A KEY-XY SLV | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12607 pcs | Data sheet | D4000, D5000 Series Catalog1318983 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 630V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Dynamic D-5200 |
| Row Spacing - Mating | 0.400" (10.16mm) | Pitch - Mating | 0.400" (10.16mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A29821 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic, Polyester, Glass Filled | Insulation Height | 1.215" (30.86mm) |
| Insulation Color | Black | Ingress Protection | IP20 |
| Features | Board Lock | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.400" (10.16mm) | Current Rating | 45A |
| Contact Type | Tab | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.150" (3.81mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Silver | Connector Type | Header |
| Applications | General Purpose, Industrial |
