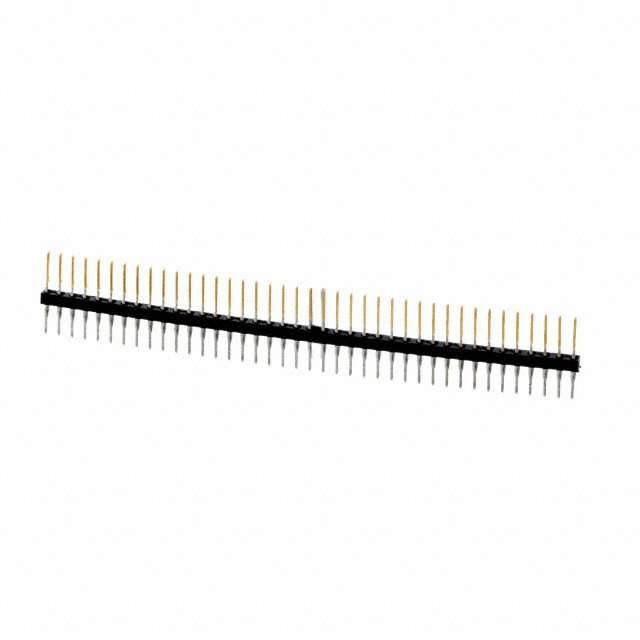

3-103336-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-103336-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-103336-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 3-103336-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 40MODIIHDRSRSTUNSHRDA/PIN |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 50 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $6.048 | $4.896 | $4.32 | $3.945 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 3-103336-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 40MODIIHDRSRSTUNSHRDA/PIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 9804 pcs | Data sheet | 103336 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | AMPMODU Mod II |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | 0.660" (16.76mm) |
| Other Names | A108359 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.090" (2.29mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 40 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.250" (6.35mm) | Contact Length - Mating | 0.320" (8.13mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
