292371-5

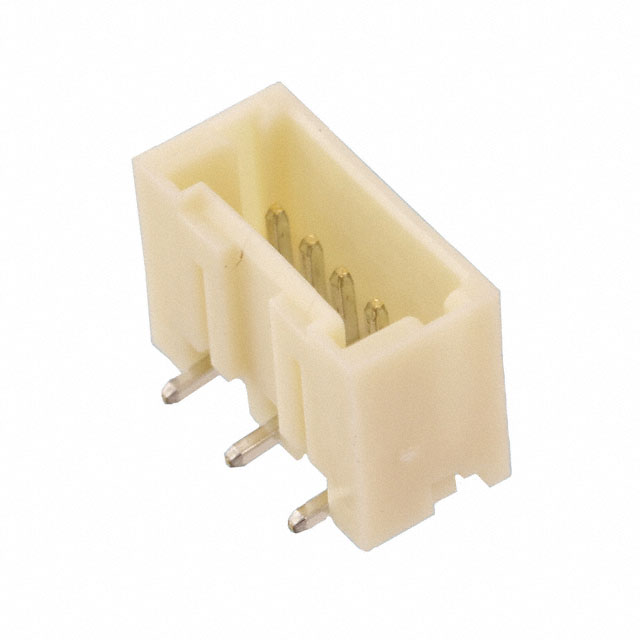

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 292371-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 292371-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 292371-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SINGLE ROW POST HEADER ASSY SMT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 20000 pcs | ||||
|---|---|---|---|---|---|
| $0.135 | |||||
- Product parameter
Product parameter
| Part Number | 292371-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SINGLE ROW POST HEADER ASSY SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 147622 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | CT |
| Row Spacing - Mating | - | Pitch - Mating | 0.059" (1.50mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | A119740TR | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled | Insulation Height | 0.272" (6.91mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Surface Mount 5 position 0.059" (1.50mm) | Current Rating | Varies by Wire Gauge |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | 0.094" (2.40mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose |
