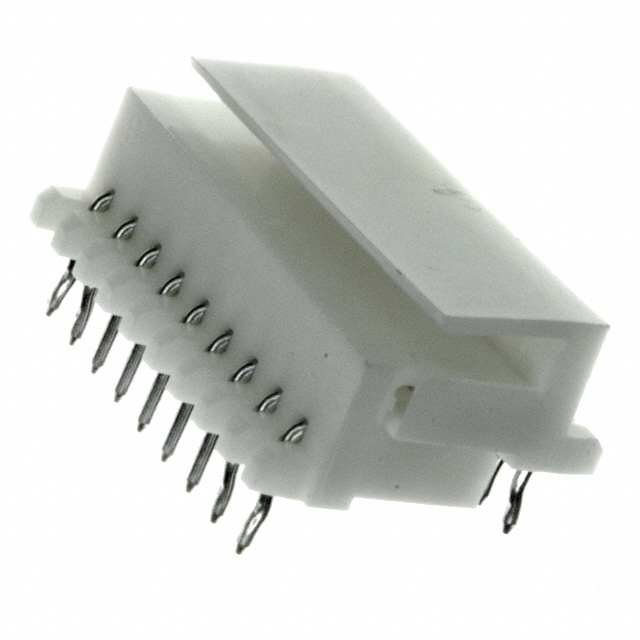

292250-9
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 292250-9 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 292250-9 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 292250-9 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 9POS R/A PCB TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.324 | $0.286 | $0.246 | $0.202 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.179 | $0.157 | $0.149 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 292250-9 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 9POS R/A PCB TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 132144 pcs | Data sheet | 292250 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | CT |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 2922509 A98770 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Insulation Height | 0.228" (5.80mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole, Right Angle 9 position 0.079" (2.00mm) | Current Rating | Varies by Wire Gauge |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | 0.165" (4.20mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose |
