Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > 292231-5

292231-5

292231-5

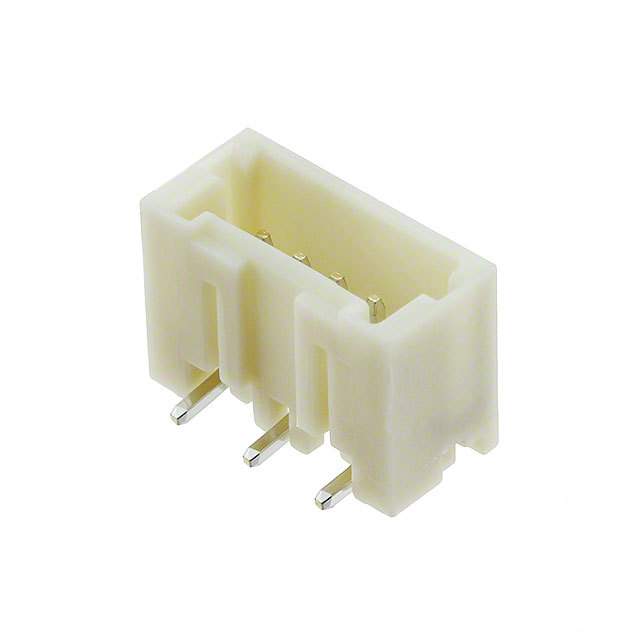

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 292231-5 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 292231-5
Manufacturer Agastat Relays / TE Connectivity
Description 1.5 MINI CT SGL V SMT W/O BOSS
Lead Free Status / RoHS Status Contains lead / RoHS Compliant
In Stock 261575 pcs
Reference Price
(In US Dollars)		20000 pcs
$0.09

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.09

Product parameter

Part Number 292231-5 Manufacturer Agastat Relays / TE Connectivity
Description 1.5 MINI CT SGL V SMT W/O BOSS Lead Free Status / RoHS Status Contains lead / RoHS Compliant
Quantity Available 261575 pcs Data sheet 292231 Drawing
Category Connectors, Interconnects Voltage Rating 50VAC
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series Mini CT
Row Spacing - Mating - Pitch - Mating 0.059" (1.50mm)
Packaging Tape & Reel (TR) Overall Contact Length -
Other Names A119738TR Operating Temperature -30°C ~ 105°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 5 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 12 Weeks
Lead Free Status / RoHS Status Contains lead / RoHS Compliant Insulation Material Polyamide (PA), Nylon, Glass Filled
Insulation Height 0.272" (6.91mm) Insulation Color Beige
Ingress Protection - Features -
Fastening Type Detent Lock Detailed Description Connector Header Surface Mount 5 position 0.059" (1.50mm)
Current Rating Varies by Wire Gauge Contact Type Male Pin
Contact Shape Square Contact Material Brass
Contact Length - Post - Contact Length - Mating 0.094" (2.40mm)
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications General Purpose
