Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > 292172-5

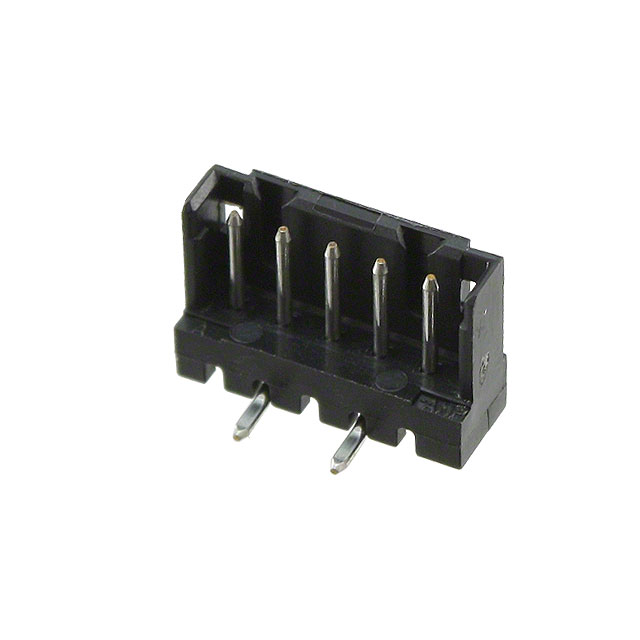

292172-5

292172-5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 292172-5 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 292172-5
Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 5POS SMD VERT TIN
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 104022 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs500 pcs
$0.411$0.361$0.311$0.255
1000 pcs5000 pcs10000 pcs
$0.226$0.198$0.188

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.411

Product parameter

Part Number 292172-5 Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 5POS SMD VERT TIN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 104022 pcs Data sheet 292172
Category Connectors, Interconnects Voltage Rating 125VAC
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall Series CT
Row Spacing - Mating - Pitch - Mating 0.079" (2.00mm)
Packaging Tube Overall Contact Length -
Other Names 292172-5-ND
A100993		 Operating Temperature -
Number of Rows 1 Number of Positions Loaded All
Number of Positions 5 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 18 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Insulation Height 0.307" (7.80mm) Insulation Color Black
Ingress Protection - Features -
Fastening Type Detent Lock Detailed Description Connector Header Surface Mount 5 position 0.079" (2.00mm)
Current Rating Varies by Wire Gauge Contact Type Male Pin
Contact Shape Circular Contact Material Brass
Contact Length - Post - Contact Length - Mating 0.177" (4.50mm)
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications General Purpose
