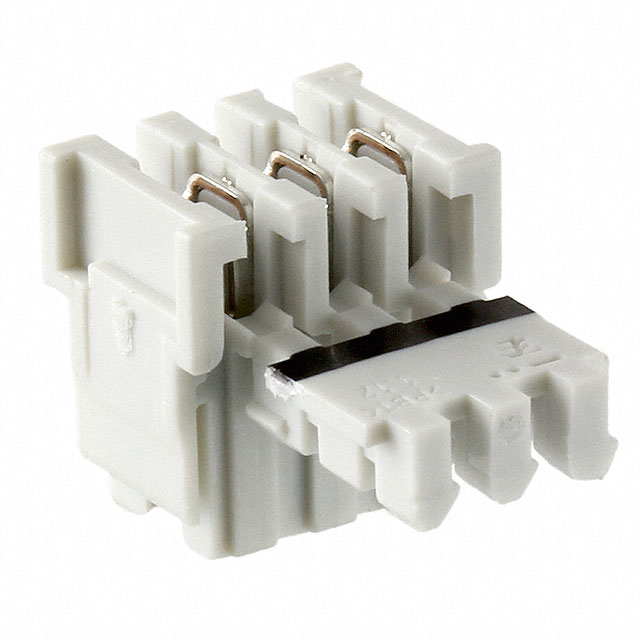

284865-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 284865-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 284865-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 284865-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DIRECT MOUNT CARD EDGE CONN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.156 | $0.145 | $0.131 | $0.116 | $0.111 | |
| 448 pcs | 896 pcs | 1344 pcs | 2688 pcs | ||
| $0.102 | $0.087 | $0.08 | $0.073 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 284865-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DIRECT MOUNT CARD EDGE CONN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 264802 pcs | Data sheet | 284865 Drawing |
| Category | Connectors, Interconnects | Wire Type | Discrete |
| Wire Gauge | 22-24 AWG | Series | DuoPlug |
| Row Spacing | - | Pitch | 0.098" (2.50mm) |
| Packaging | Bulk | Other Names | A119703 |
| Number of Rows | 1 | Number of Positions | 3 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Mates to PCB | Fastening Type | - |
| Detailed Description | 3 Position Rectangular Receptacle Connector IDC Tin 22-24 AWG | Contact Type | Female Blade Socket |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Connector Type | Receptacle | Color | - |
| Cable Termination | IDC |
