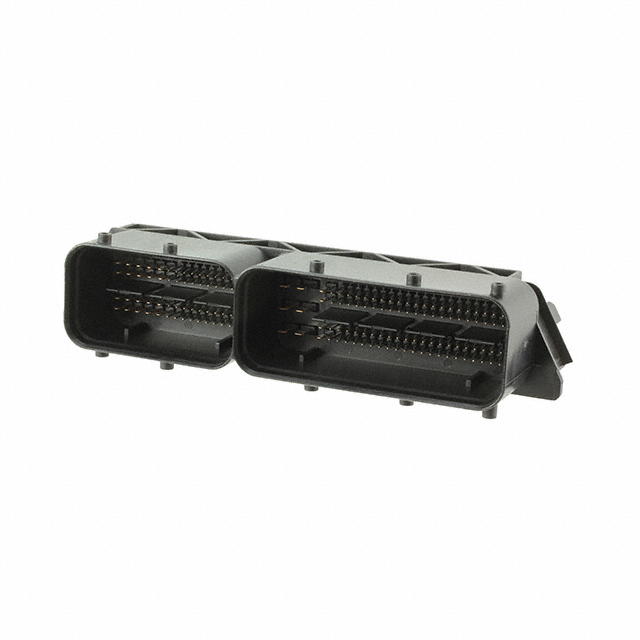

284617-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 284617-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 284617-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 284617-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 154 POS PIN & TAB HEADER ASSY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 15 pcs | 105 pcs | ||
|---|---|---|---|---|---|
| $16.833 | $15.842 | $13.565 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 284617-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 154 POS PIN & TAB HEADER ASSY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2773 pcs | Data sheet | 284617 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | A123701 | Operating Temperature | -40°C ~ 125°C |
| Number of Rows | - | Number of Positions Loaded | All |
| Number of Positions | 154 (120 + 34 Power) | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 21 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | - | Insulation Height | - |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Board Lock | Fastening Type | - |
| Detailed Description | Connector Header Panel Mount, Through Hole, Right Angle 154 (120 + 34 Power) position | Current Rating | - |
| Contact Type | Male Blade; Male Pin | Contact Shape | - |
| Contact Material | - | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive |
