284506-8

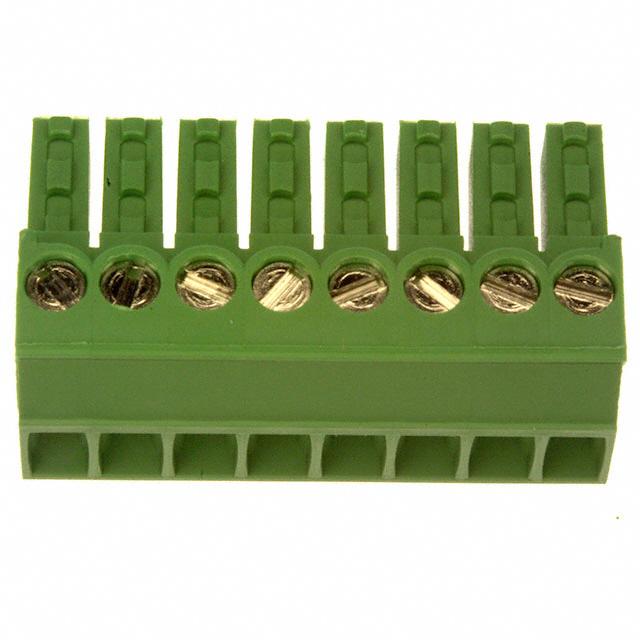

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 284506-8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 284506-8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 284506-8 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK PLUG 8POS STR 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.035 | $2.394 | $2.278 | $2.067 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.986 | $1.752 | $1.635 | $1.518 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 284506-8 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK PLUG 8POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23800 pcs | Data sheet | 284506 DrawingTerminal Blocks, Eurostyle |
| Category | Connectors, Interconnects | Wire Strip Length | 5-6mm |
| Wire Gauge or Range - mm² | 0.05-2mm² | Wire Gauge or Range - AWG | 14-30 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.31 Nm (2.7 Lb-In) | Termination Style | Screw - Rising Cage Clamp |
| Series | Buchanan | Screw Size | M2 |
| Positions Per Level | 8 | Plug Wire Entry | 180° |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 2845068 A98174 |
Operating Temperature | -40°C ~ 110°C |
| Number of Positions | 8 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.437" (11.10mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | - | Features | Side Stacking |
| Detailed Description | 8 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) | Current - UL | 11A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Phosphor Bronze |
| Color | Green |
