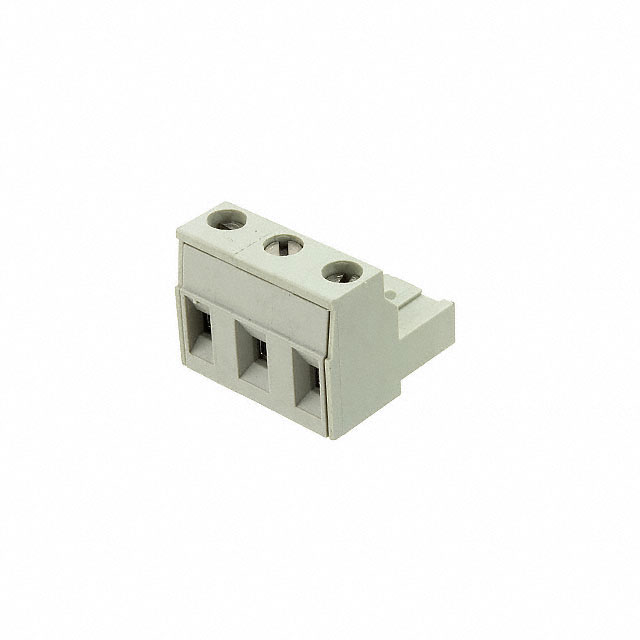

282959-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 282959-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 282959-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 282959-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK PLUG 3POS STR 7.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.091 | $0.827 | $0.766 | $0.689 | $0.672 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.588 | $0.538 | $0.487 | $0.428 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 282959-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK PLUG 3POS STR 7.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75216 pcs | Data sheet | 282959-2 |
| Category | Connectors, Interconnects | Wire Strip Length | 6-7.5mm |
| Wire Gauge or Range - mm² | 0.05-2mm² | Wire Gauge or Range - AWG | 12-30 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.79 Nm (7.0 Lb-In) | Termination Style | Screw - Rising Cage Clamp |
| Series | Buchanan | Screw Size | M3 |
| Positions Per Level | 3 | Plug Wire Entry | 180° |
| Pitch | 0.295" (7.50mm) | Packaging | Bulk |
| Other Names | 282959-3-ND A113342 |
Operating Temperature | -40°C ~ 110°C |
| Number of Positions | 3 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.610" (15.49mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | - | Features | Retention Latches (Non-Wire Side) |
| Detailed Description | 3 Position Terminal Block Plug, Female Sockets 0.295" (7.50mm) 180° Free Hanging (In-Line) | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Phosphor Bronze |
| Color | Green |
