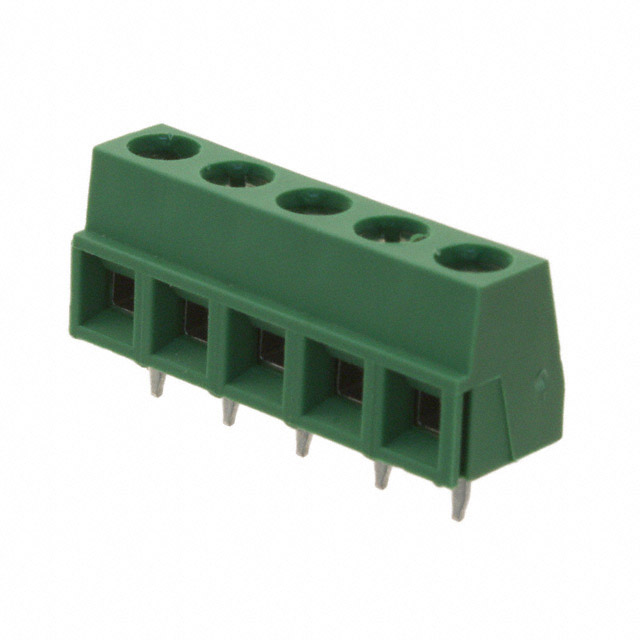

282836-5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 282836-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 282836-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 282836-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK 5POS SIDE ENTRY 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.601 | $0.454 | $0.42 | $0.378 | $0.369 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.323 | $0.295 | $0.267 | $0.235 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 282836-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK 5POS SIDE ENTRY 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91628 pcs | Data sheet | 282836 DrawingTerminal Blocks, Eurostyle |
| Category | Connectors, Interconnects | Wire Termination | Screw - Rising Cage Clamp |
| Wire Gauge | 16-30 AWG | Voltage | 300V |
| Torque - Screw | 0.68 Nm (6 Lb-In) | Series | Buchanan |
| Screw Thread | M3 | Screw Material - Plating | Brass - Nickel Plated |
| Positions Per Level | 5 | Pitch | 0.197" (5.00mm) |
| Packaging | Tray | Other Names | 2828365 5ULV-05 5ULV-05B A98079 |
| Operating Temperature | - | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Features | Interlocking (Side) | Detailed Description | 5 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole |
| Current | 13.5A | Contact Material - Plating | Brass - Tin Plated |
| Color | Green | Clamp Material - Plating | Brass - Nickel Plated |
