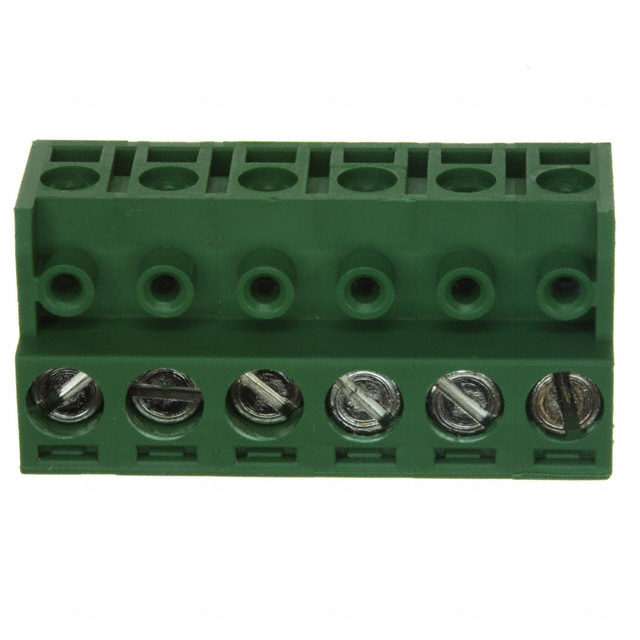

282830-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 282830-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 282830-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 282830-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK PLUG 6POS 90DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.185 | $1.665 | $1.56 | $1.387 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.356 | $1.251 | $1.13 | $1.002 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 282830-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK PLUG 6POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30932 pcs | Data sheet | Terminal Blocks, Eurostyle282830 Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | 6-7.5mm |
| Wire Gauge or Range - mm² | 0.05-2mm² | Wire Gauge or Range - AWG | 12-30 AWG |
| Voltage - UL | 300V | Type | Plug for Unshrouded Header |
| Torque - Screw | 0.68 Nm (6 Lb-In) | Termination Style | Screw - Rising Cage Clamp |
| Series | Buchanan | Screw Size | M3 |
| Positions Per Level | 6 | Plug Wire Entry | 90° |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 282830-6-ND 2828306 A98329 |
Operating Temperature | -40°C ~ 110°C |
| Number of Positions | 6 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.453" (11.50mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | - | Features | Side Stacking |
| Detailed Description | 6 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line) | Current - UL | 12A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Phosphor Bronze |
| Color | Green |
