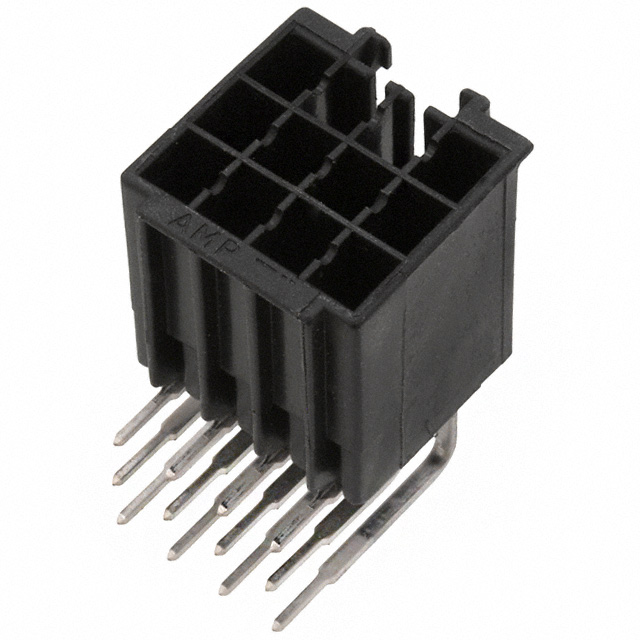

282357-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 282357-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 282357-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 282357-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 12POS R/A .156 PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 282357-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 12POS R/A .156 PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5307 pcs | Data sheet | 282357 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Universal Power |
| Row Spacing - Mating | 0.156" (3.96mm) | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 282357-1-ND 2823571 A107228 |
Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | - | Insulation Height | - |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole, Right Angle 12 position 0.156" (3.96mm) | Current Rating | Varies by Wire Gauge |
| Contact Type | Tab | Contact Shape | Rectangular |
| Contact Material | - | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose |
