281698-6

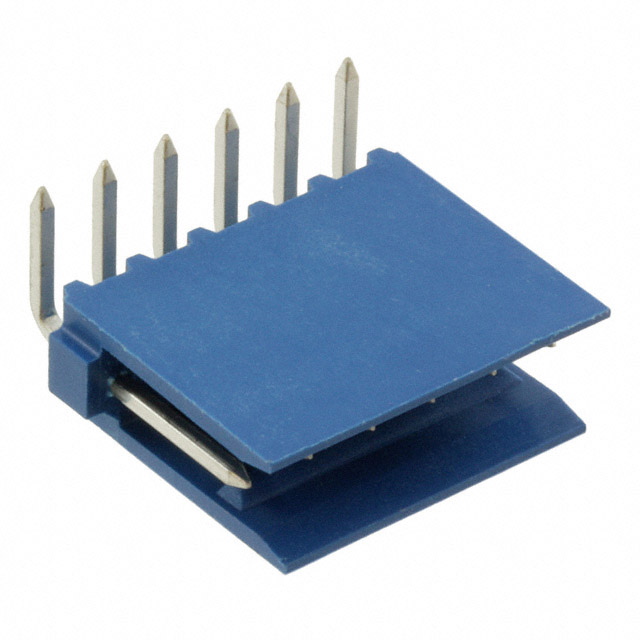

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 281698-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 281698-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 281698-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 6POS R/A T/H TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.313 | $0.276 | $0.259 | $0.249 | $0.238 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.216 | $0.195 | $0.173 | $0.157 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 281698-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 6POS R/A T/H TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 138498 pcs | Data sheet | 281698 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall | Series | HE13/HE14 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 281698-6-ND 2816986 A106217 |
Operating Temperature | -40°C ~ 100°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.200" (5.08mm) | Insulation Color | Blue |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.114" (2.90mm) | Contact Length - Mating | 0.276" (7.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
