280613-2

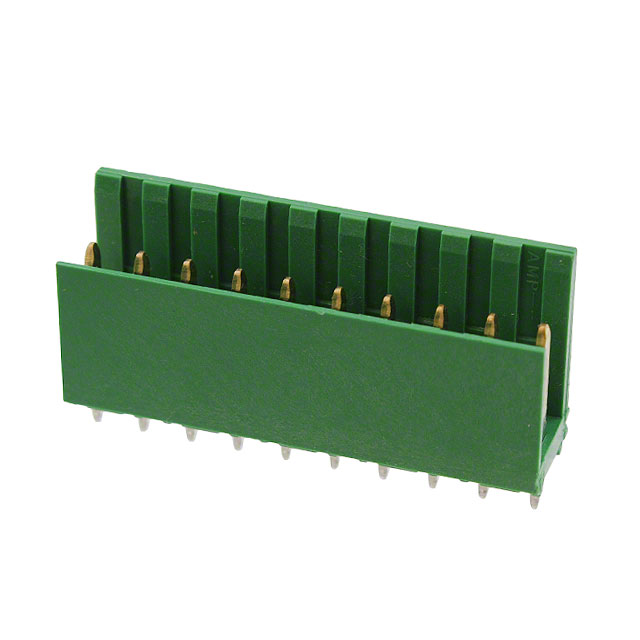

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 280613-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 280613-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 280613-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 10POS VERT .156 GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.948 | $1.87 | $1.559 | $1.325 | $1.13 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 280613-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 10POS VERT .156 GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32652 pcs | Data sheet | 280609-614 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 2 Wall | Series | AMPMODU Mod I |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.642" (16.30mm) |
| Other Names | 280613-2-ND 2806132 A106425 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 30 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycarbonate, Glass Filled |
| Insulation Height | 0.913" (23.20mm) | Insulation Color | Green |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 10 position 0.156" (3.96mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | 0.394" (10.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
