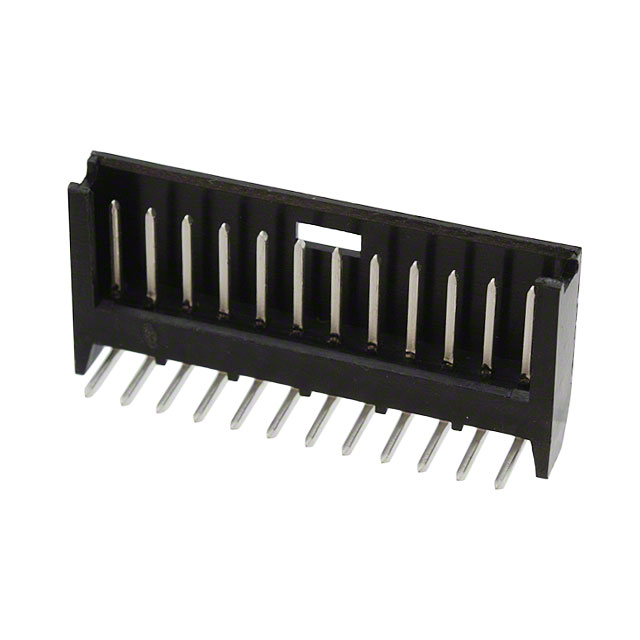

280523-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 280523-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 280523-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 280523-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 12POS R/A .100 TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.488 | $0.444 | $0.381 | $0.317 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.272 | $0.241 | $0.236 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 280523-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 12POS R/A .100 TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83646 pcs | Data sheet | 2803xx, 2805xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 40V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 3 Wall | Series | AMPMODU Mod II |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 280523-1-ND 2805231 A106419 |
Operating Temperature | -40°C ~ 80°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 33 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.197" (5.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.260" (6.60mm) |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
