280509-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 280509-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 280509-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 280509-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |

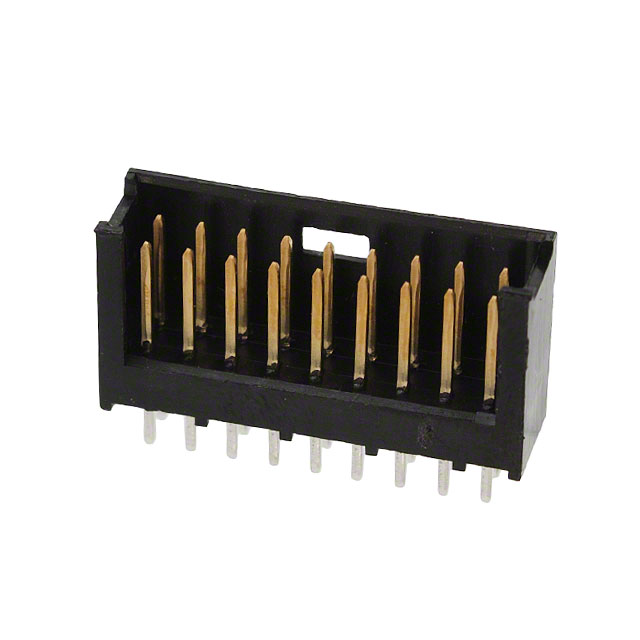

| Description | CONN HEADER 18POS VERT GOLD .100 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.295 | $1.243 | $1.036 | $0.881 | $0.777 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 280509-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 18POS VERT GOLD .100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43858 pcs | Data sheet | 28038x, 281019, 285xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 40V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 3 Wall | Series | AMPMODU Mod II |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.563" (14.30mm) |
| Other Names | 280509-2-ND 2805092 A106413 |
Operating Temperature | -40°C ~ 80°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 18 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 30 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.496" (12.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 18 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.260" (6.60mm) |
| Contact Finish Thickness - Post | 98.4µin (2.50µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
