280376-1

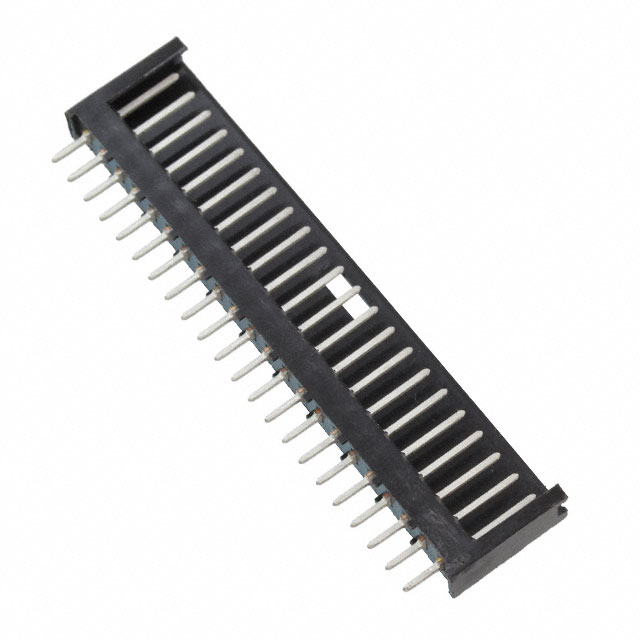

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 280376-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 280376-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 280376-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 22P AMPMODU II SHRD HDR ST TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.737 | $0.67 | $0.574 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.478 | $0.41 | $0.364 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 280376-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 22P AMPMODU II SHRD HDR ST TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85748 pcs | Data sheet | 280370 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 40V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 3 Wall | Series | AMPMODU Mod II |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.563" (14.30mm) |
| Other Names | A119537 | Operating Temperature | -40°C ~ 80°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 22 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.496" (12.60mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole 22 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | 0.260" (6.60mm) | Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
